EG100-G2000 Ultrahigh movable partition

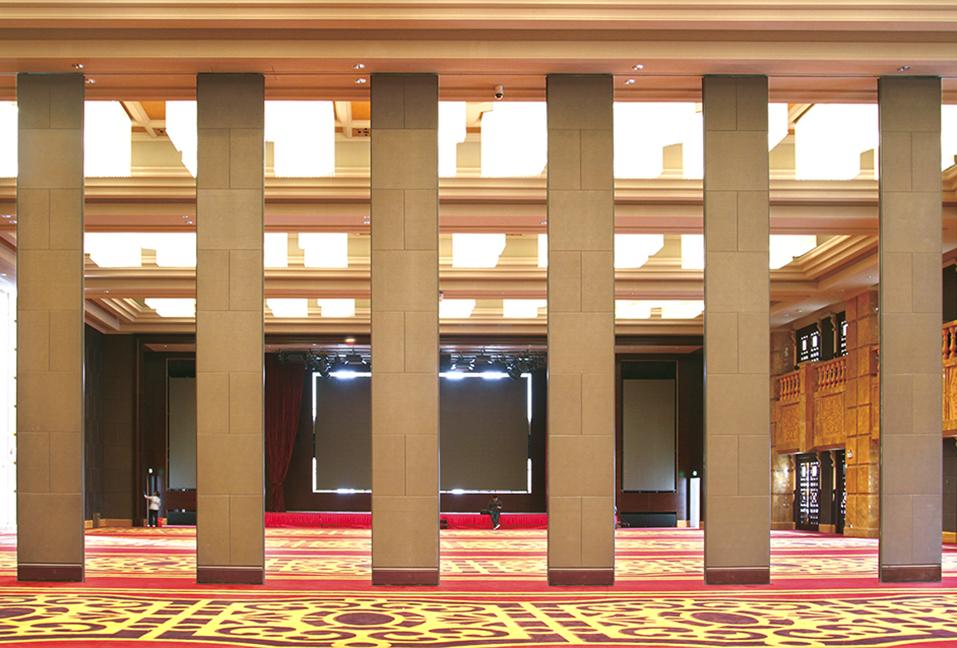

Egood Ultrahigh heavy duty  aluminum track system

are used when the partition height or weights limit exceed that recommended for the normal aluminum system.Maximum height can reach to 12.5meters with panelweight up to 900kg,each carrier has four steel wheels with precision ground radial bearings.Carriers cam be programmed for self-directing and sorting.all junction traks are factory assembled and welded.Minium dimension from the ceiling to the structure is 300mm.

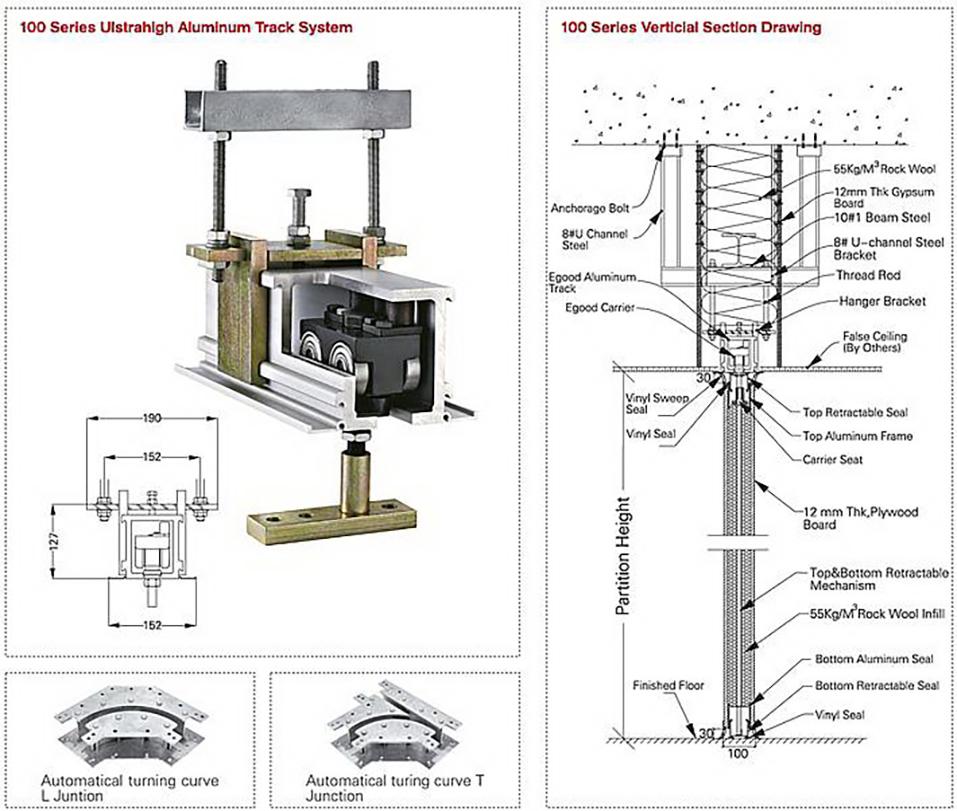

Ultrahigh track system and vertical section drawing:



Technical data of Type 100 ultrahigh heavy duty aluminum track  system :

Model Weight
(kg/m)
Fire Rating(min) STC Performance Specification Carrier
Thickness
(mm)
Width(mm) Height(mm) Top Seal(mm)/ Pressure(kg) Bottom Seal(mm)/ Pressure(kg) LCP stretch (mm)
EG100-43 38 60 43db 100 680-1219 5000-12500 30/40 30/40 140


Steel roller

EG100-48 46 60 48db 100 680-1219 5000-12500 30/40 30/40 140
EG100-53 55 60 53db 100 680-1219 5000-12500 30/40 30/40 140



Egood Ultrahigh heavy duty Steel track system

are used when the partition height or weights limit exceed that recommended for the normal aluminum system.Maximum height can reach to 17meters with panel weight up to 1300kg,each carrier has four steel wheels with precision ground radial bearing,Bearings are inserted into a steel tire.The steel tire rim fully captures the bearings.Carriers cam be programmed for self-direction and sorting.the track is of formed black painted high stength steel.The track trim cover is clear anodized aluminum.all jucntion tracks are factory assemble andwelded.Minium dimension from the ceiling to the structure is 350mm.

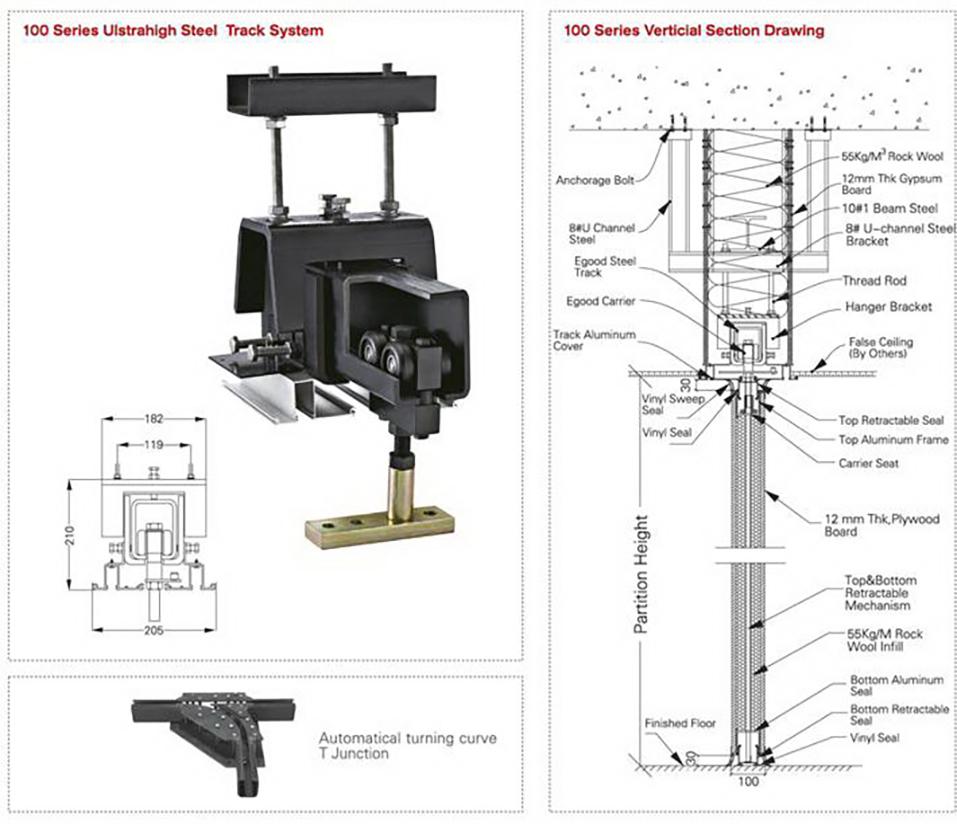

Ultrahigh steeltrack system and vertical section drawing:



Technical data of Type 100 ultrahigh heavy duty steel track  system :

Model Weight
(kg/m)
Fire Rating(min) STC Performance Specification Carrier
Thickness
(mm)
Width(mm) Height(mm) Top Seal(mm)/ Pressure(kg) Bottom Seal(mm)/ Pressure(kg) LCP stretch (mm)
EG100-43 38 60 43db 100 680-1219 5000-17000 30/40 30/40 140


Steel roller

EG100-48 46 60 48db 100 680-1219 5000-17000 30/40 30/40 140
EG100-53 55 60 53db 100 680-1219 5000-17000 30/40 30/40 140
